16425 – Electrical Connector, Deutsch, DT04-2P Receptacle Assembly, Nickel Pins
Product Code: 16425
£6.74
Specification
| Name | Value |
|---|---|
| Mating pin diameter | 1.5mm |
| Connector system | wire to wire |
| Number of positions | 2 |
| Centre line (pitch) | 4.45mm |
| Sealable | Yes |
| Operating Voltage (VDC) | 250 |
| Operating temperature range | -55 to 125°C |
| Degree of protection | IP68 |
| Pump | |
| Wire | |
| Wire Length | |
| Weight | |
| Length | 43.38mm |
| Width | 17.15mm |
| Height | 17.02mm |
Description

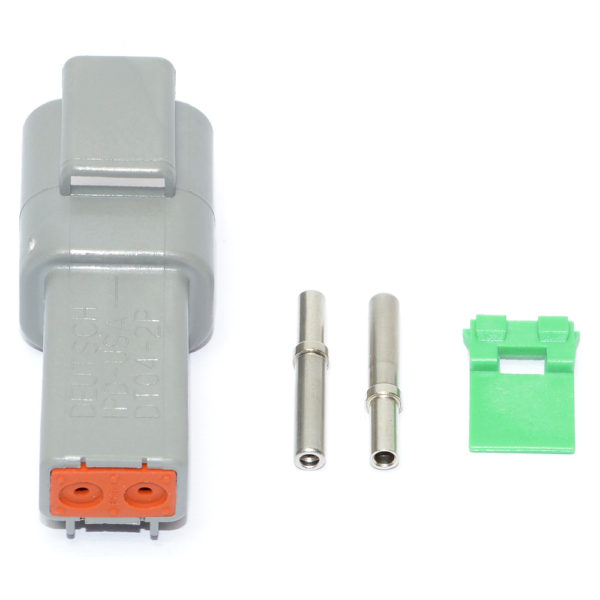

DT04-2P Deutsch electrical connector housing for male terminals.
(TE Internal Number: DT04-2P)
Application Hints
Ensure electrical connections are all insulated properly.
Ensure all connections are tight.
Ensure terminals are the correct way round.
