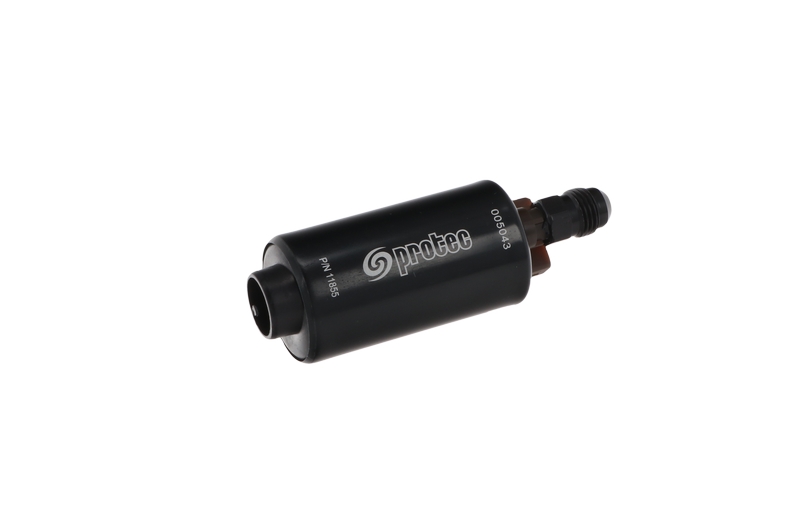

11855 – Low Pressure Lift Pump, LPVW, AN-6 Outlet (now 11820)
Product Code: 11855
Specification
Name | Value |
---|---|
Flow | 185 ltr/hr @ 0.21 bar (3-4 psi) |
Weight | 173 grams |
External Materials | Black Anodised Aluminium |
Inlet Fitting | 19mm OD |
Outlet Fitting | 9mm OD (11810) or AN-6 (11855) |
Impeller Design | Composite |
Terminal Post | Spade Terminal OE Fitment |
Min Voltage Input | 6 vdc |
Max Voltage Input | 18 vdc |
Current Draw | 1.25 amps (13.8vdc) @ (2-3 psi) |
Description
Race proven lift pump solution.
Compact 36mm body
Low Pressure lift pump, 185ltr/hr open flow
Unique serial number, fully traceable
Suitable for most popular race fuels
Suitable for E15
Quiet and reliable impeller
Available as 11810 with AN-6 (JIC6) fitting
See filter section for 19mm filters that are compatible with this product
Application Hints
Ensure fuel is always clean and filtered.
Check filter replace as required.
Compatible with all regular fuels including E15, not for use with 100% Ethanol based fuels.
Not for use with pressurised collector pot (use 11805).
