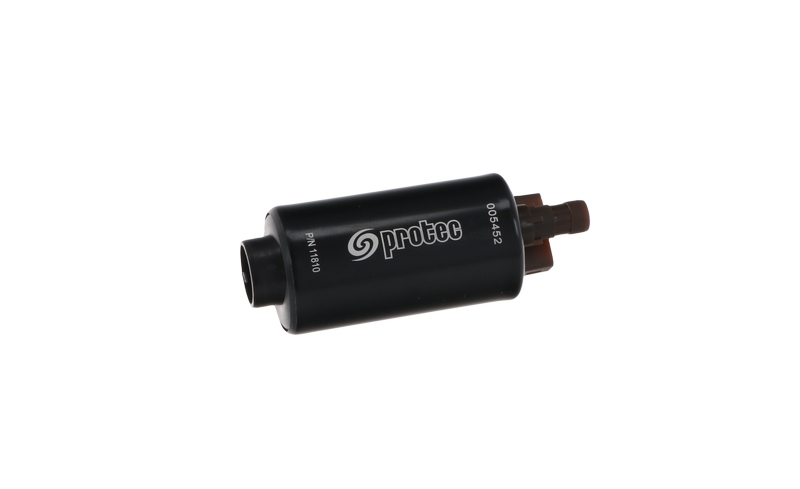

11810 – Low Pressure Lift Pump LPVW (now 11818)

Product Code: 11810

Cost

Specification

Name Value
Flow 185 ltr/hr @ 0.21 bar (3-4 psi)
Weight 173 grams
External Materials Black Anodised Aluminium
Inlet Fitting 19mm OD
Outlet Fitting 9mm OD (11810) or AN-6 (11855)
Impeller Design Composite
Terminal Post Spade Terminal OE Fitment
Min Voltage Input 6 vdc
Max Voltage Input 18 vdc
Current Draw 1.25 amps (13.8vdc) @ (2-3 psi)

Description

Race proven lift pump solution.

Compact 36mm body Low Pressure lift pump,

185ltr/hr open flow

Unique serial number,

Fully traceable

Suitable for most popular race fuels Suitable for E15 Quiet and reliable impeller

Available with AN-6 Male (JIC-6) Outlet (11855), 3/8 Male SAE (11856), 5/16 Male SAE (11857)

See filter section for 19mm filters that are compatible with this product

direct replacement for VDO PU-AC-020

Icon
11810 Low Pressure Lift Pump LPVW datasheet 424.57 KB

Application Hints

Ensure fuel is always clean and filtered

Check filter is replaced or cleaned at regular intervals
