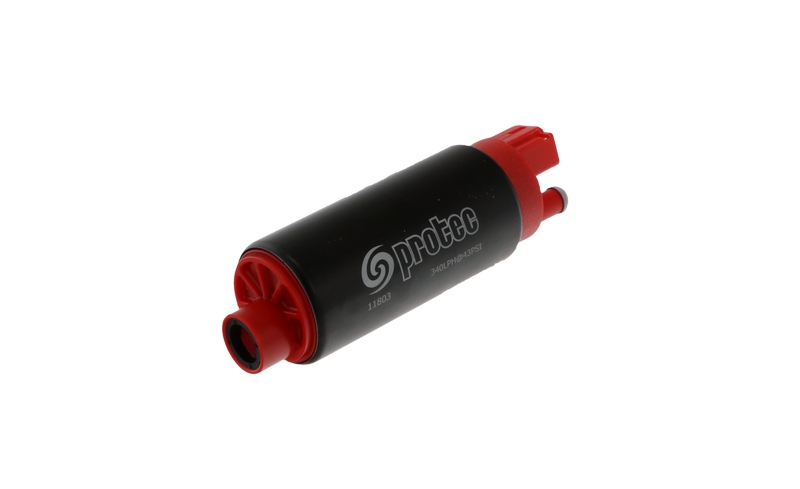

11803 – In-Tank High Pressure 340 Pump GM Inlet
Product Code: 11803
£100.89
Specification
| Name | Value |
|---|---|
| Flow | |
| Weight | 355 grams |
| External Materials | Black Steel Body |
| Inlet Fitting | 19mm OD |
| Outlet Fitting | 9mm OD |
| Impeller Design | Regenerative Turbine |
| Terminal Post | Spade Terminal OE Fitment |
| Min Voltage Input | 6 vdc |
| Max Voltage Input | 18 vdc |
| Current Draw | 12 amps (13.8vdc) @ (40 psi) |
Description
The 340 Fuel Pump is a high-output, in-tank, electric fuel pump that fits most popular EFI applications. The 340 is a compact, lightweight pump that bolts into many existing assemblies. This pump is ideal for applications requiring more flow while retaining the factory lines and mounting provisions available in the Original Equipment (O.E.) configuration.
Fits most vehicles (See Application List)
Internal Check Valve
Designed for in-tank use only
Ethanol Compatibility*
Can be used in Carbureted or EFI applications
Turbine pump mechanism increases durability and can be used in pulse modulated applications.
* Reduced Run-Time
Application Hints
Ensure fuel is always clean and filtered.
Check filter replace as required.
Compatible with all regular fuels.
